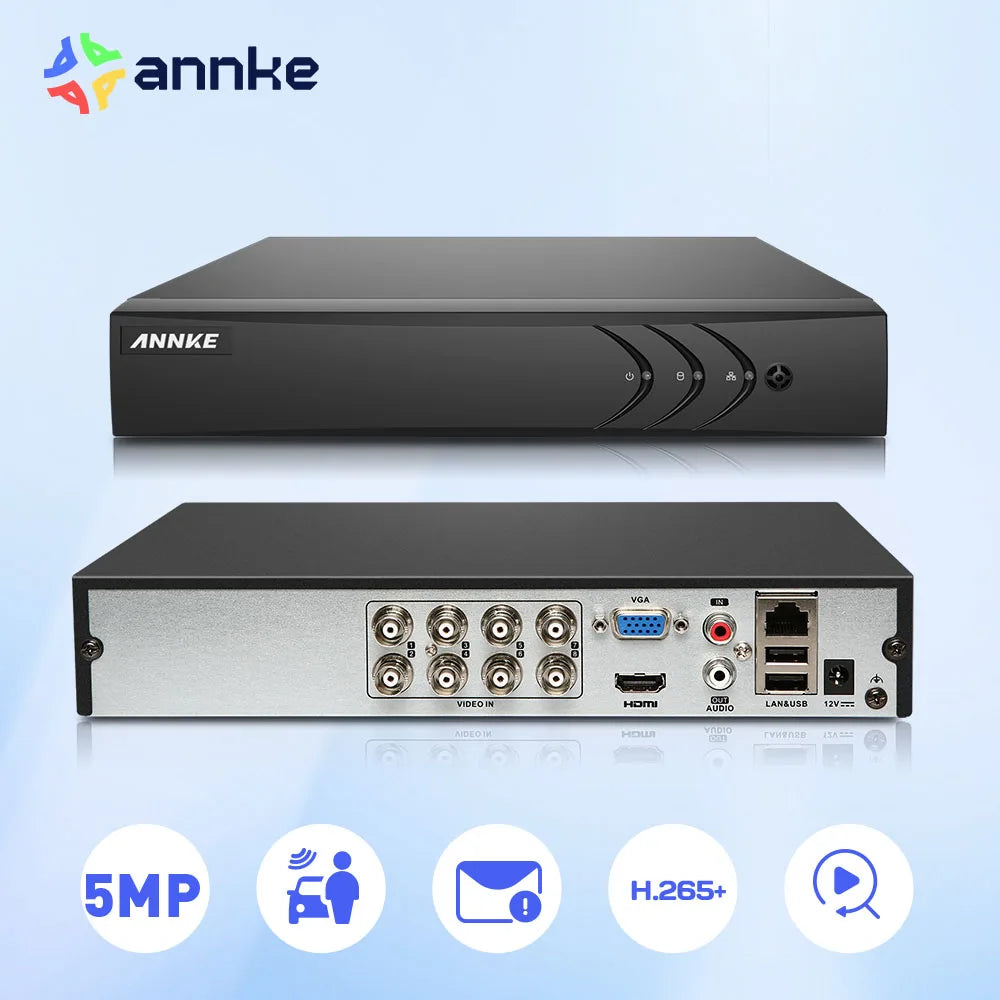

ANNKE 5MP Lite DVR 8CH HD Surveillance PIR Motion Detection


Build-in HDD: 2T
Price:
Sale price£172.24

Tax included Shipping calculated at checkout

Stock:
In stock

Description

High-concerned chemical:None
DVR Power Supply:DC12V
e-Cloud(P2P):No
Two-way Audio:No
Backup Type:Hard Drive
Supported Operating Systems:Microsoft Windows 98,Microsoft Windows 7
Supported Mobile Systems:iPhone OS,Android
IP Mode:Dynamic IP address
Wireless Security:wep
Communication Interface:None
Network Interface:RJ45 10/100M
Hard Drive Size:3.5''
Hard drive Interface Type:SATA
Video Adjustment:Brightness Adjustable
Audio Output:1CH RCA
Video Resolution:5 MP
Video Standard:NTSC/PAL
Audio Compression Format:G711A
Audio Input:1 Channel
Video Input Interface:BNC (1.0 Vp-p, 75Ω)
HDD Capacity:4 TB,3TB,2TB,1TB
Model Number:DW81KT
Brand Name:ANNKE
Alarm Type:FTP Photo,Email Photo,Local Alarm
Smart home platform:Other
Certification:CE,FCC
Video Compression:H.264+/H.264/H.265/H.265+
Video Input:8CH Analog HD/Analog + 2CH IP camera
Video Output:HDMI and VGA Up to 1080P
IPC Recording Resolution:Up to 6MP
IPC Playback Resolution:Up to 6MP
Max Playback Channel:8-ch
Onvif:Support
HDD Capacity:Up to 6TB capacity
Network interface:RJ45x1(10/100M)
Analog HD Recording Resolution 1:5MP Lite/3MP/1080p/720p
Analog HD Recording Resolution 2:VGA/WD1/4CIF/CIF@12fps
Analog HD Playback Resolution 1:5MP Lite/3 MP/1080p/720p
Analog HD Playback Resolution 2:VGA/WD1/4CIF/CIF
Dimensions(W x H x D):260 * 222 * 45 mm
Key Features:(only support AHD 1080P cameras!)


· Up to 3K high definition live viewing

· Up to 3K Lite recording & playback

· Advanced H.265+ Video Compression

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1

· Supports iPhone、iPad、Android mobile remote monitoring

· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels

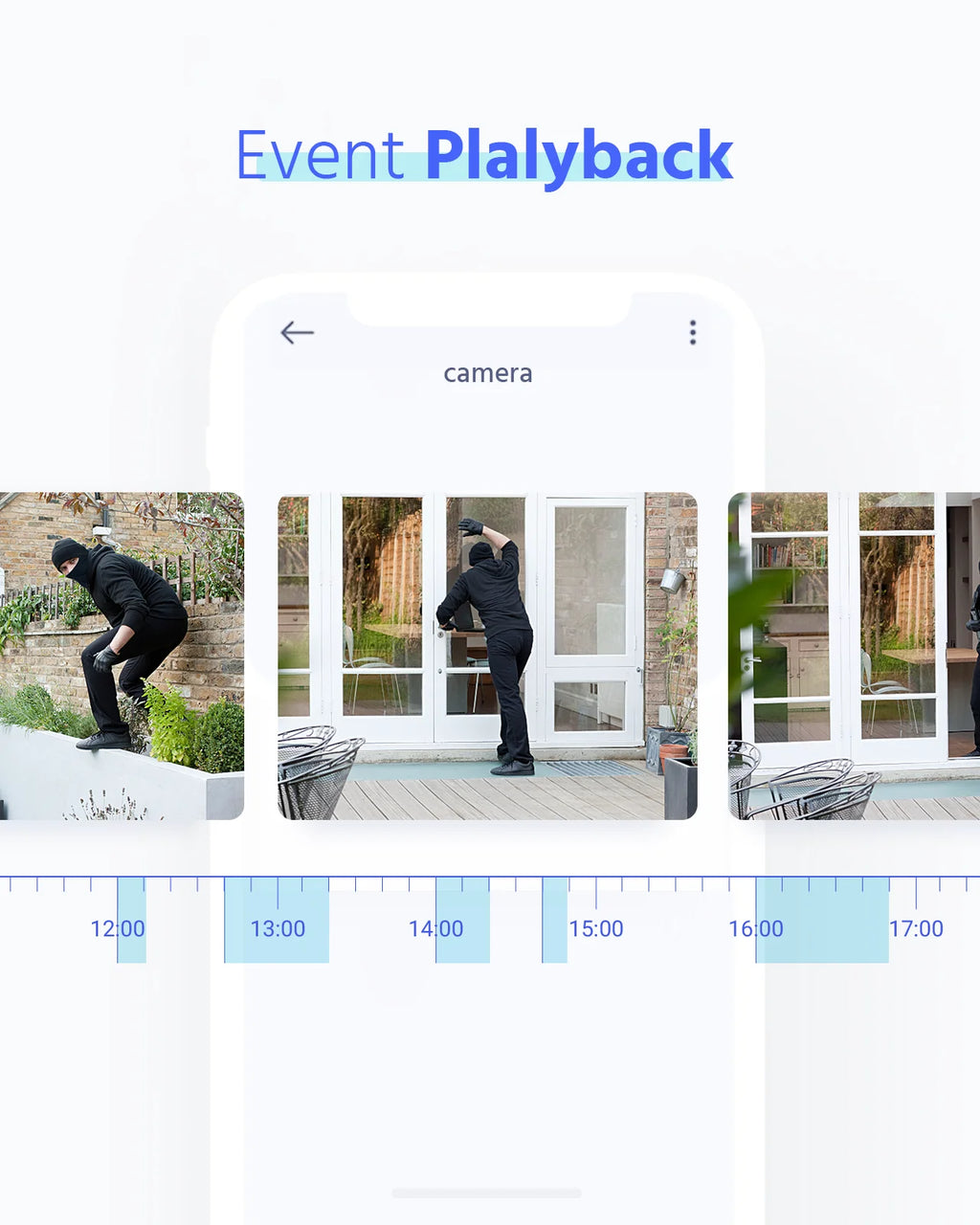

· Quick search by object or event type

· Audio via coaxial cable




DVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

Video Input

8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)

Video Output

HDMI and VGA Up to 1080P

Audio Input

1-ch RCA,8-ch via coaxial cable

Audio Output

1-ch RCA

Supported Camera Types

Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input6MP/5MP/4MP/3MP/1080P/720P

Analog HD Playback Resolution

3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps

IPC Playback Resolution

Up to 6MP

Max Playback Channel

2-ch

Protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Motion Detection 2.0

All analog channels support human and vehicle detection to reduce false alarm

Hard Drive

HDD

1 SATA interface

HDD Capacity

Up to 10TB capacity

External Interface

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB

USB2.0x2

General

Operating Power

DC12V,≤ 12W (without HDD)

Working Temperature

-14 °F – 131 °F /-10 °C – 55 °C

Dimensions(W x H x D)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk)

≤ 1 kg (2.2 lb)(without HDD)
